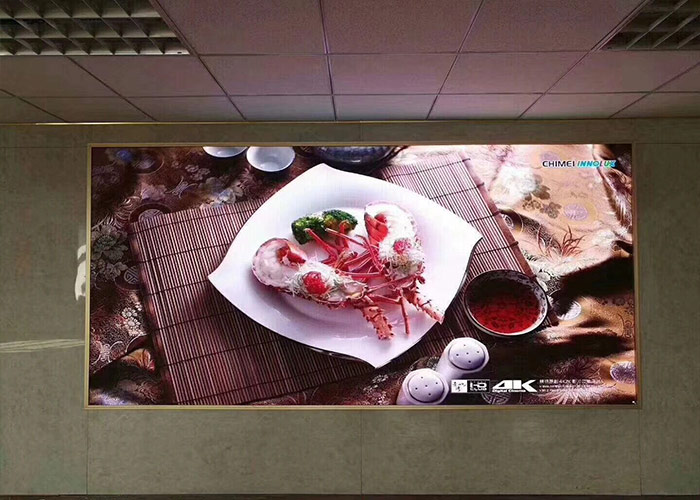

Small Pixel Pitch Advertising Billboard P3 HD Indoor LED Display Screen
Specification:
| 1.LED Module |
| Dot Pitch(mm) | 3mm | | Size(W×H) | 192*192mm |
| Pixel Point(Dot/ m2) | 111111 dots/m2 | | Resolution(W×H) | 64 * 64 dots |
| 2.LED Lamp |
| 3. Simply Cabinet or Wall Frame |
| Module sizes | 192*192mm |
| Cabinet Size(W×H) | fixed installation : 960mm * 960mm (rental: 576*576mm) |
| Module Weight(g/pcs) | About 185g/pcs |
| 4.Led Display Specification |
| ITME | SPECIFICATION |
| LED Display | Best View distance:3~15m |
| Viewing angle-Horizontal :140 degree; |
| Viewing angle-Vertical :120 degree |
| Environment Temp: -40ºC ~ +85ºC |
| Working Temp: -20ºC ~ +50ºC |
| Operating Humidity Range:≤10~95% |
| Power Supply | Operating Voltage: 220V±5% |
| Average Power: 200W/m2 |
| Max Power: 400W/m2 |
| Control System | Control mode:asychronous/ synchronous control |
| Main Technical Parameter | Full white brightness:≥1200nits |
| Driving IC:MBI5020 Led Driver |
| Scan mode:1/32 scan |
| Frame frequency:≥60 HZ/s |
| Refresh rate:≥960 HZ/s |
| Grey scale levels/Color processing:65536levels, Process 16.7M colors |
| Brightness adjustment mode: 100 levels available |
| MTBF:≥10,000 hours |
| Life-span:100,000 hours |
| Flatness:neighbor pixel≤0.5mm;module joint gap<1mm ; |
| Uniformity:pixel light intensity, module brightness uniformity |
Product Features:
1) High brightness(>1200cd/M2 ), adjustable.
2) Clear vivid image quality.
3) Good Raw Materials: Nationstar/ Kinglight/ Epistar led chip, Nationstar led lamp, Chipone/MBI IC, G-energy/ CL
Power Supp.
4) Installation is simple by fast lock.
5) High stability and long span: Aging test at least 24 hours before shipment, 100, 000 hours life span.
6) Cabinet: Diecasting aluminum rental cabinets 576*576mm or standard iron waterproof 960*960 cabinets.
7) Package: Flight case, wooden box package & carton box and so on.
8) Guarantee:2 years.
Application:
Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector,
traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
Our services:
1) Your inquiry will be replied within 24 hours!
2) 2 years for warranty, service time: 24 hours*7 days.
3) Aging test at least 24 hours before shipment.
4) Factory and product inspection accepted.
Trade Terms:
1) Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2) Shipping port: Shenzhen, China.
3) Shipping freights are quoted according to your requests.
4) Delivery time:10-15 working days.
Product Tags:
|
|
Advertising Small Pitch LED Display , P3 HD Indoor LED Display Screen 111111 dot/㎡ Images
|
